Two stage Industrial Compressors

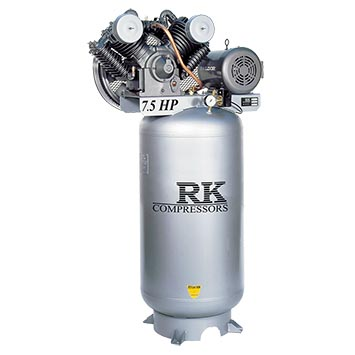

DF-7580 and DF-75120H  / V-4 Cyl., 7.5HP

DF-7580 and DF-75120H

DF-7580 and DF-75120H compressors are designed for heavy or industrial use. These piston compressors are reliable, heavy duty and durable and require a minimum of maintenance. They are used in a wide range of applications such as vehicle servicing, automotive body repair shops, woodworking shops, machining, production and manufacturing lines and much more.

Features:

  • 2-stage, 4-cylinder cast iron pump - head, cylinders, aftercooler, intercooler and pump body
    • Low RPM for longer life
    • Oil sight glass for rapid level checks
    • Oil drain extension for easy oil changes
    • Tapered roller bearings
    • Ten individual concentric disk valves
    • Splash lubricated
  • Magnetic motor starter mounted and wired for all popular voltages
  • 7.5HP Baldor electric motor equipped with an internal overload protection
  • Certified ASME air receiver tanks
  • Automatic start/stop regulation by pressure switch
  • Voltages available:
    •  230V - 1 phase / 31 amps required
    •  208/230/460V - 3 phases / 9.4 amps required with 460V
    •  575V - 3 phases / 7.8 amps required

All units are factory tested, shipped with the proper oil level and READY TO GO!

MODEL PUMP RPM CFM SIZE (in.) GALLON / WEIGHT
DF-7580H ICM-10C 560 24.0 @ 150 psi L=63 W=21 H=44 80 gal/711 lbs
DF-7580V ICM-10C 560 24.0 @ 150 psi L=40 W=24 H=72 80 gal/717 lbs
DF-75120H ICM-10C 560 24.0 @ 150 psi L=68 W=25 H=47 120 gal/844 lbs
Spec. Sheet
IPL

ONE YEAR WARRANTY
